EasyDim: general features

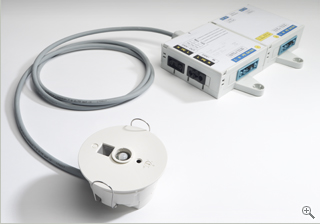

Consists of smart sensor control unit, plug-in installation box with Wieland plugs (for recessed mounting only) and connection cables.
Works with DALI luminaires.
The sensor has three functionalities: daylight dependent control, motion detection and infrared reception for remote control. The sensor control unit is fitted with an extendible, rotating shield in front of the motion detector, which prevents the lights from being turned on unnecessarily.
The sensor control unit is fitted with an LED indicator that provides information at all times as to how much you are saving, enabling you to adjust where necessary.
Sensor range: up to 20 m² for smaller movements (e.g., office) and 48 m² for larger movements (e.g., classrooms). EasyDim can be expanded with 2 further motion detectors to increase the detection range.
EasyDim is preconfigured by Excellum depending on the application. Offices, classrooms, corridors, sanitary facilities, etc., each have their own parameters.
In standard situations, you can easily install and adapt EasyDim yourself. If you wish, Excellum can carry out on-site commissioning.

EasyDim is available in two standard versions:
