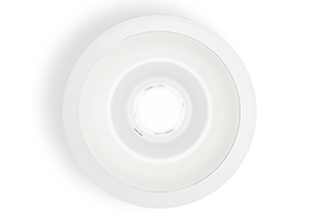

D9: the widest choice
in downlights
[ 14-01-2017 ]With the D9 you have ample choice to gear your lighting to your own taste and needs.

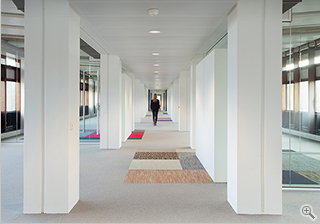

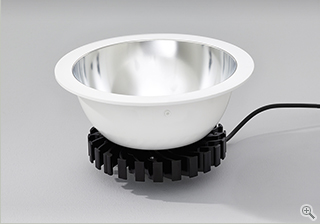

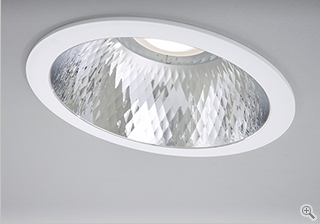

ETAP has developed three reflectors: a specular, faceted reflector for the best efficiency; a satin-anodized reflector for a calmer image and a matte white reflector for diffuse lighting. You can choose from three lumen packages: 1000, 2000 and 3000 lumen. The D9 is suitable for corridors, sanitary spaces (IP44 version) and public areas within the building.
(*)Consult your ETAP adviser for availability
Efficient
The superior thermal design and specially developed reflectors ensure specific luminous flux up to 127 lm/W. The various reflectors ensure optimal light distribution, thus allowing to limit the number of luminaires.
Chip-on-board
 These downlights feature a chip-on-board (COB) light source, an LED component consisting of several LED chips. The chips are electrically interconnected and are covered with a layer of phosphorus (in order to convert the blue LED light into white light). The COB module boasts diffuse shielding in order to limit the LEDs’ high luminance. |
Seamless finish
The D9’s polycarbonate housing and reflector form one unit, without visible seams, resulting in their discreet integration into the ceiling.
Optionally the D9 can be fitted with a matte cover glass. For humid spaces, we have a IP44 cover glass available to protect the downlight against splash water.
Watch the installation video
